Micsig OP20-5 Pointe SigOFIT (20X / 500 MHz)
799 €
958,80 € TVA INCLUSE

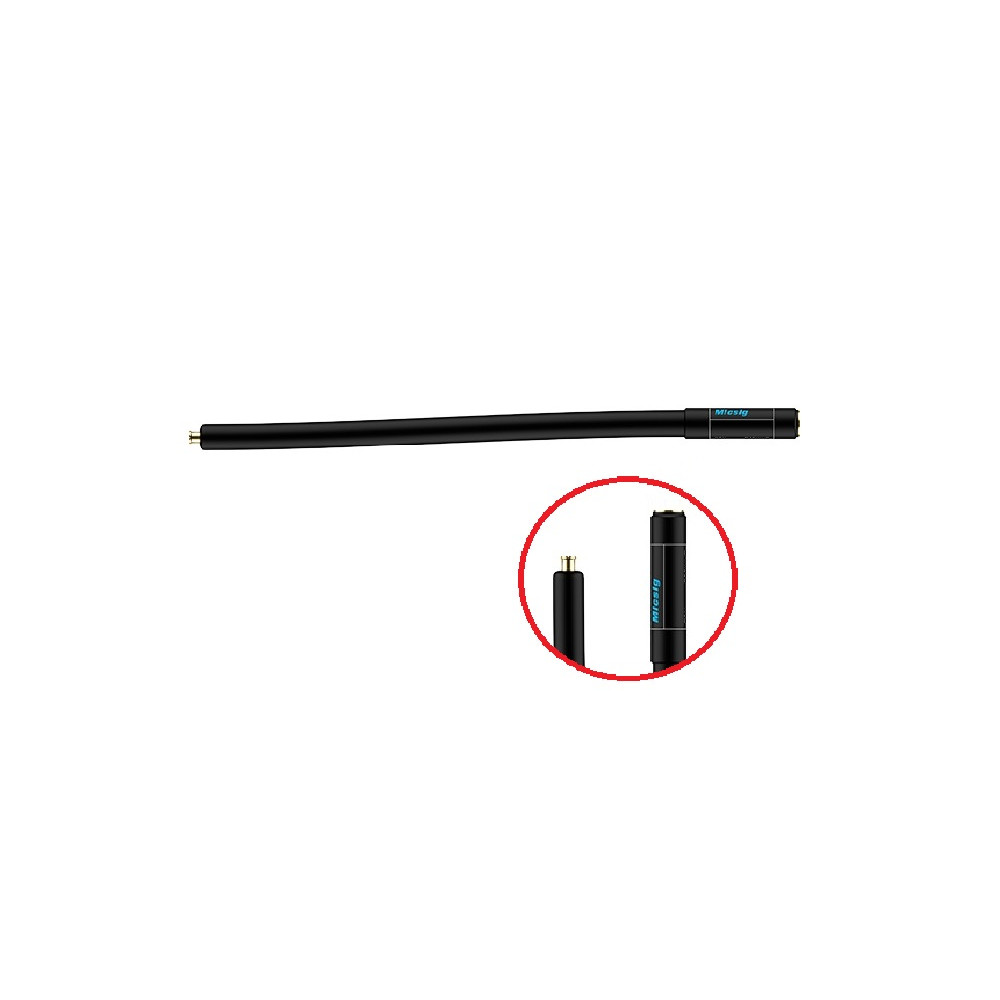

Pointe atténuatrice 20X / 500 MHz pour sondes à fibre optique Micsig SIGOFIT.
Pointe de sonde d'atténuation 20X, bande passante de 500 MHz, et plage de tension de ±10V pour les sondes à fibre optique Micsig SIGOFIT.
Attention : Sélectionnez l'atténuateur approprié pour la mesure afin d'éviter d'endommager le convertisseur électro-optique ou une dégradation des performances due à une surtension. Sélectionnez la pointe atténuante avec le rapport d'atténuation inférieur autorisé par la plage du signal testé.
L'atténuateur doit être choisi en fonction de la tension crête (ou tension efficace) du signal à l'essai. Voir les spécifications techniques pour la sélection de l'atténuateur approprié.
|
SigOFIT model |
Attening Tip model |
Adapter type |
Attenuation ratio |
Voltage range |
Non- destructive voltage (Max.) |
Input impedance |
|
MOIP100P & MOIP200P |
OP10-2 |
MMCX |
10:1 @0dB |
±12.5V |
1000Vpp |
3.75MΩ || 6pF |
|
1:1 @20dB |
±1.25V |
|||||
|
OP20-2 |
MMCX |
20:1 @0dB |
±25V |
1000Vpp |
4.47MΩ || 4pF |
|
|
2:1 @20dB |
±2.5V |
|||||
|
OP50-2 |
MMCX |
50:1 @0dB |
±62.5V |
1000Vpp |
4.19MΩ || 2pF |
|
|
5:1 @20dB |
±6.25V |
|||||
|
OP100-2 |
MMCX |
100:1 @0dB |
±125V |
1000Vpp |
4.10MΩ || 2pF |
|
|
10:1 @20dB |
±12.5V |
|||||
|
OP200-2 |
MCX |
200:1 @0dB |
±250V |
2500Vpp |
9.03MΩ || 2pF |
|
|
20:1 @20dB |
±25V |
|||||
|
OP500-2 |
MCX |
500:1 @0dB |
±625V |
2500Vpp |
20.98MΩ || 1pF |
|
|
50:1 @20dB |
±62.5V |
|||||
|
OP1000-2 |
MCX |
1000:1 @0dB |
±1250V |
2500Vpp |
20.94MΩ || 1pF |
|
|
100:1 @20dB |
±125V |
|||||
|
OP2000-2 |
MCX |
2000:1 @0dB |
±2500V |
2500Vpp |
20.52MΩ || 1pF |
|
|
200:1 @20dB |
±250V |
|||||
|
OP5000-2 |
LCX |
5000:1 @0dB |
±6250V |
8000Vpp |
40.82MΩ|| 2.4pF |
|
|
500:1 @20dB |
±625V |
|||||
|
MOIP350P |
OP10-3 |
MMCX |
10:1 @0dB |
±12.5V |
1000Vpp |
3.75MΩ || 6pF |
|
1:1 @20dB |
±1.25V |
|||||
|
OP20-3 |
MMCX |
20:1 @0dB |
±25V |
1000Vpp |
4.47MΩ || 4pF |
|
|
2:1 @20dB |
±2.5V |
|||||
|
OP50-3 |
MMCX |
50:1 @0dB |
±62.5V |
1000Vpp |
4.19MΩ || 2pF |
|
|
5:1 @20dB |
±6.25V |
|||||
|
OP100-3 |
MMCX |
100:1 @0dB |
±125V |
1000Vpp |
4.10MΩ || 2pF |
|
|
10:1 @20dB |
±12.5V |
|||||
|
OP200-3 |
MCX |
200:1 @0dB |
±250V |
2500Vpp |
9.03MΩ || 2pF |
|
|
20:1 @20dB |
±25V |
|||||
|
OP500-3 |
MCX |
500:1 @0dB |
±625V |
2500Vpp |
20.98MΩ || 1pF |
|
|
50:1 @20dB |
±62.5V |
|||||
|
OP1000-3 |
MCX |
1000:1 @0dB |
±1250V |
2500Vpp |
20.94MΩ || 1pF |
|
|
100:1 @20dB |
±125V |
|||||
|
OP2000-3 |
MCX |
2000:1 @0dB |
±2500V |
2500Vpp |
20.52MΩ || 1pF |
|
|
200:1 @20dB |
±250V |
|||||
|
OP5000-3 |
LCX |
5000:1 @0dB |
±6250V |
8000Vpp |
40.82MΩ|| 2.4pF |
|
|
500:1 @20dB |
±625V |
|||||
|
MOIP500P |
OP10-5 |
MMCX |
10:1 @0dB |
±5V |
1000Vpp |
3.75MΩ || 6pF |
|
1:1 @20dB |
±0.5V |
|||||
|
OP20-5 |
MMCX |
20:1 @0dB |
±10V |
1000Vpp |
4.47MΩ || 4pF |
|
|
2:1 @20dB |
±1V |
|
MOIP500P |
OP50-5 |
MMCX |
50:1 @0dB |
±25V |
1000Vpp |
4.19MΩ || 2pF |
|
5:1 @20dB |
±2.5V |
|||||
|
OP100-5 |
MMCX |
100:1 @0dB |
±50V |
1000Vpp |
4.10MΩ || 2pF |
|
|
10:1 @20dB |
±5V |
|||||
|
OP200-5 |
MCX |
200:1 @0dB |
±100V |
2500Vpp |
9.03MΩ || 2pF |
|
|
20:1 @20dB |
±10V |
|||||
|
OP500-5 |
MCX |
500:1 @0dB |
±250V |
2500Vpp |
20.98MΩ || 1pF |
|
|
50:1 @20dB |
±25V |
|||||
|
OP1000-5 |
MCX |
1000:1 @0dB |
±500V |
2500Vpp |
20.94MΩ || 1pF |
|
|
100:1 @20dB |
±50V |
|||||
|
OP2000-5 |
MCX |
2000:1 @0dB |
±1000V |
2500Vpp |
20.52MΩ || 1pF |
|
|
200:1 @20dB |
±100V |
|||||
|
OP5000-5 |
MCX |
5000:1 @0dB |
±2500V |
3600Vpp |
40.92MΩ || 1pF |
|
|
500:1 @20dB |
±250V |
|||||
|
OP10000-5 |
LCX |
10000:1 @0dB |
±5000V |
8000Vpp |
40.82MΩ|| 2.4pF |
|
|
1000:1 @20dB |
±500V |
|||||
|
MOIP800P & MOIP1000P |
OP10-1G |
MMCX |
10:1 @0dB |
±5V |
1000Vpp |
3.75MΩ || 6pF |
|
1:1 @20dB |
±0.5V |
|||||
|
OP20-1G |
MMCX |
20:1 @0dB |
±10V |
1000Vpp |
4.47MΩ || 4pF |
|
|
2:1 @20dB |
±1V |
|||||
|
OP50-1G |
MMCX |
50:1 @0dB |
±25V |
1000Vpp |
4.19MΩ || 2pF |
|
|
5:1 @20dB |
±2.5V |
|||||
|
OP100-1G |
MMCX |
100:1 @0dB |
±50V |
1000Vpp |
4.10MΩ || 2pF |
|
|
10:1 @20dB |
±5V |
|||||
|
OP200-1G |
MCX |
200:1 @0dB |
±100V |
2500Vpp |
9.03MΩ || 2pF |
|
|
20:1 @20dB |
±10V |
|||||
|
OP500-1G |
MCX |
500:1 @0dB |
±250V |
2500Vpp |
20.98MΩ || 1pF |
|
|
50:1 @20dB |
±25V |
|||||
|
OP1000-1G |
MCX |
1000:1 @0dB |
±500V |
2500Vpp |
20.94MΩ || 1pF |
|
|
100:1 @20dB |
±50V |
|||||
|
OP2000-1G |
MCX |
2000:1 @0dB |
±1000V |
2500Vpp |
20.52MΩ || 1pF |
|
|
200:1 @20dB |
±100V |
|||||
|
OP5000-1G |
MCX |
5000:1 @0dB |
±2500V |
3600Vpp |
40.92MΩ || 1pF |
|
|
500:1 @20dB |
±250V |
|||||
|
OP10000-1G |
LCX |
10000:1 @0dB |
±5000V |
8000Vpp |
40.82MΩ|| 2.4pF |
|
|
1000:1 @20dB |
±500V |
Adapters and coaxial lead
|
Accessory name |
Withstand voltage range |
|
MMCX-adapter |
＜300 Vpp |
|
MCX-adapter |
＜3000 Vpp |
|
MMCX coaxial lead |
＜300 Vpp |
|
MCX coaxial lead |
＜3000 Vpp |
|
LCX coaxial lead |
＜8000 Vpp |
